This machine was designed for the automatic packaging of pharmacy, chemicals and foods, such as small cake,tablets, sucking-tablets and pills Features: 1) Decorated with stainless steel in accordance with the GMP standard 2) Adopts advanced CPU CMOS chip and imported power switch. All the functions can be controlled with buttons 3) Accurate tracing records, with an error of less than 0.5mm when the speed is 10 bags/min for 60-100pcs 4) Computer sets the length of bag, which prevents you from the trouble of exchanging of gears and adjusting the bag length 5) With the functions of setting automatic output alarm and showing the speed 6) Ribbon coder can be equipped to automatically print 1-3 lines of letters like number and production date. 7) Suitable packaging materials: PT/PE, PET/PE, PET/AL plating/PE, BOPP/PE and other compound packing materials can be heat sealed Parameters: 1) Model: SD-38P 2) Bag size: a) Length: 140mm b) Width: 85mm 3) Packaging speed: 10 bags/min 4) Filling quantity: 60-100 pcs 5) Power source: 220V, 50Hz, 1.5kW 6) Machine weight: 350kg 7) Machine dimensions: 600 x 790 x 1,740mm

Function： This machine was designed for the automatic packing of materials in food, Pharmacy, Chemicals like flour, black pepper, and so on. Features： 1. All the work of bag making, measuring, material filling, sealing, counting and code printing can be done automatically. 2.Photoelectric and tracing system or PLC system can be provided without your specific requirements. The PLC controller has the advantages such as setting the length of the bag, the out put alarm and the speed and quantity with buttons. 3.Adopts computer controller, step motor feeding which drives the screw pushing the materials. 4.Code-printing machine can be equipped to automatically print 1-3 lines of letters, date and so on.   SD-38F SD-75F SD-188F SD-688F Sealing mode Three side、central side Three side、central side Three side、central side Central side Packaging speed 40-65bags/min 40-65bags/min 20-60bags/min 10-30bags/min Bag size L:55-110mm W:30-80mm L:80-150mm W:60-105mm L；80-180mm W；50-140mm L；100-310mm W；70-210mm Filling quantity 5-40ml 30-100ml 10-300ml 100-1000ml Power 220V 50HZ 1.5KW 220V 50HZ 1.5KW 220V 50HZ 1.8KW 220V 50HZ 1.8KW Machine dimension 600*790*1800mm 600*790*1800mm 1000*800*2000mm 1200*900*2000mm

Model: SD-K  Granular Packaging Machinery Function： This series of machine were designed for the automatic package of non-sticky powder、granular materials in foodstuff and pharmacy such as coffee、salt、sugar、peanut 、plant seeds、drier ,Chemicals tea and etc. Feature: 1. All the work of bag making, measuring, material filling, sealing, counting and code printing can be done automatically. 2. Photoelectric and tracing system or PLC system can be provided without your specific requirements. The PLC controller has the advantages such as setting the length of the bag, the out put alarm and the speed and quantity with buttons. 3. Code-Printer can be equipped to automatically print 1-3 lines of letter like production date etc. Packing materials: Paper/PE, PT/PE, PET/plated AL/PE, PET/PE, BOPP film, tea-leaf filtering paper and other heat sealable laminates films etc. Model SD-38K SD-75K SD-188K SD-688K Sealing mode Three side. Four side Central side Three side. Four side. Central side Three side. Four side. Central side Three side. Four side. Central side Packaging speed 50-100bags/min 35-80bags/min 20-60bags/min 10--30bags/min Bag size L: 55-110mm W: 30-80mm L: 80-150mm W: 60-105mm L:80-180mm W:50-140mm L:100-310mm W:70-210mm Filling quantity 5-40ml 30-150ml 10-300ml 100-1000ml Power 220V 50HZ 1.5KW 220V 50HZ 1.5KW 220V 50HZ 1.8KW 220V 50HZ 1.8KW Machine weight 350kg 350kg 300kg 350kg Machine dimension 600*790*1800 600*790*1800 1000*800*2000 1200*900*2000

Summary： Model SD-TB-J1 Multi-function Labeler for flat part is used for the labeling for flat part of an object such as box, card or similar things in food, chemical, and medicine industry. It can realize the automatic bottle-conveying, label-separation, attaching and so on series. The whole machine can be controlled by micro-instruments, which will be automatic control and check. The label and flat object will be at the same step. Code printing system can also be matched according to customer’s requirement. It is precise and easy to adjust and operate without causing much noises, part of the spare parts can be made according to customer’s requirement. Model SDTB-J1 multi-function labeler Drive Motor driven Direction right/left Capacity 80～200pcs/minute Label size width：15～150mm   length：15～300mm Precision + 1mm Label roll Max:Φ300mm Label corn Stander:Φ75mm Machine size 2500X1300X1500mm Weight 280kg Power AC 110V/220V  50/60HZ   2.5KW Coding device DT-280

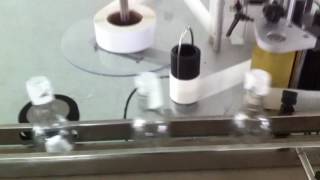

Introduction: Vertical Labeler for round bottle is mainly used in food, chemical and medicine industry. It can realize the automatic bottle-conveying, label separating, labeling round the bottle, automatically print lot number etc.  It adopts mechanical electrical monobloc technology, and stepper motor or servo motor and imported PLC controlling system, so as so be sure the accurate, stable, reliable labeling. Technical parameter: 1)Labeling range: φ16～φ250mm(customized) 2) Capacity: 40-100b/min (adopts pneumatic code) 3) Label size: label cardboard tube: φ76mm Label width: 20mm-90mm Max external diameter: φ300mm Label length: 30-180mm                    4) Power supply: 220V 50Hz 5) Power: 250W 6) Dimension: 1200mm×750mm×1200mm 7) Weight: 150KG

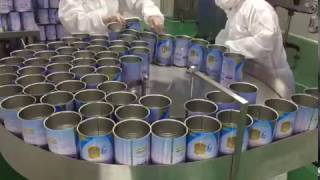

Product Description This machine is applicable for Round Shaped Tinplate can , Aluminum Can or PET can seaming with vacuuming and nitrogen filling processes. Technical Parameters 1) Seaming Speed: 10 cans / minutes 2) Size range of can: Diameter: 70-127mm, Height: 80-190mm 3) Power requirement: 380V, 50/60HZ, 4) Power Capacity: 4.0 Kw 5) Net Weight: 500kg 6) Dimension: 2000(L)×800(W)×1850(H)mm 7) Compressing Air Requirement: 0.6-0.8MPa 8) Compressing Air Consumption: 80Liter/Min 9) Nitrogen Pressure: >=0.4Mpa 10) Nitrogen Consumption: App. 50 Liter/Min 11) Residual oxygen content: <=5% 12) Vacuuming Pump: Include 13) Filter Tank: Include, Stainless Steel 304

The machine can finishing measuring, filling etc. because of original design, it is more suitable for packing powdered material that is easy to flow, like veterinary drug, sugar, glucose, carbon dust, talcum powder, essence etc. Except motor, the shell of the whole machine is 304 stainless steel, and the powder contact part is SS 316.combined transparent work bin, easy to dismantle without tools. Adopts servo motor to drive auger, with the advantages of durable, accurate location, stable function etc. the machine is controlled by PLC, with stable working, anti-distraction, high filling precision etc. Parameter： 1.Production capacity: 20-25 b/min 2.Filling head: 1 3.Applicable specification: customized 4.Filling error:≤±2% 5.Voltage:380v/50HZ 6.Power:2.2kw 7.Dimension: 1200*1200*1700mm 8.Weight: 600kg

Brief introduction: The bottle caps neatened by the cap neatening device ,the bottle caps with mouth up are carried to the caps collecting guideway, the bottles come from other equipment of the assembly line enter the caps collecting area. The bottles move ahead with clamping of the two sides clamping device then the caps match the bottles automatically. The cap pressing device presses the caps to the pre-tight situation before rotating the caps. Under the function of three pairs of high speed rotating wearable rubber wheels, the caps match with the bottles tightly. Main parameter: Bottle height Φ20-φ250mm Capping size Φ20mm～Φ130mm（the shute is customized） Conveying direction Left-right(or right-left) Capacity 30-50bottles/min Powder supply 220V 50-60Hz Power 1300W Weight 450kg Dimension 1500mm×1000mm×1800mm

Bottle feeding machine: This automatic ordering machine adopts one motor to drive working table-board rotate, so as to deed bottle into conveyor. It is mainly suitable for cans, round or square bottle, is corollary equipment of automatic product ling in common usage, to satisfying many kinds of bottle, if  adjust, you need only adjust the position and height of baffle. The machine is equipped with stepless governing frequency conversion. Auger powder feeding machine The machine is specially used for feeding material into powder filling machine; it is widely used in food, chemical industry, plastic packing and other industries. The height is subject to space of workshop. It can move freely, high speed, and reliable.  It can equipped with different screw according to different material.The parts touching material is made of stainless steel. 1 head powder filling machine The machine can finishing measuring, filling etc. because of original design, it is more suitable for packing powdered material that is easy to flow, like veterinary drug, sugar, glucose, carbon dust, talcum powder, essence etc. Except motor, the shell of the whole machine is 304 stainless steel, and the powder contact part are SS 316.combined transparent workbin, easy to dismantle without tools. Adopts servo motor to drive auger, with the advantages of durable, accurate location, stable function etc. the machine is controlled by PLC, with stable working, anti-distraction, high filling precision etc. Automatic Round Can Vacuuming and Nitrogen Filling can sealer Product Description This machine is applicable for Round Shaped Tinplate can , Aluminum Can or PET can seaming with vacuuming and nitrogen filling processes. Technical Parameters 1)  Seaming Speed: 10 cans / minutes 2)  Size range of can: Diameter: 70-127mm, Height: 80-190mm 3)  Power requirement: 380V, 50/60HZ, 4)  Power Capacity: 4.0 Kw 5)  Net Weight: 500kg 6)  Dimension: 2000(L)×800(W)×1850(H)mm 7)  Compressing Air Requirement: 0.6-0.8MPa 8)  Compressing Air Consumption: 80Liter/Min 9)  Nitrogen Pressure: >=0.4Mpa 10) Nitrogen Consumption: App. 50 Liter/Min 11)  Residual oxygen content: <=5% 12) Vacuuming Pump: Include

Bottle unscrambler Summarize This automatic ordering machine is mainly suitable for round or square bottle, jar etc. is corollary equipment of automatic product ling in common usage, to satisfying many kinds of bottle, if  adjust, you need only adjust the position and height of baffle. The machine is equipped with step less governing frequency conversion. Mainly parts: (1) machine shelf. (2) Electric motor. (3) Reduce speed machine (4) conveyer belt. (5) Entering bottle tray. (6) Lead Export pack. (7) Stainless steel ordering bottle board. (8) Turning institution. Etc. 8 heads filling machine Overview: This machine is specially made for all kinds of viscosity materials, such as chocolate paste，peanut butter, honey, butter, Mayonnaise, ketchup etc. All the contacted part with the chemical oil is high quality stainless steel. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision. Item Piston pump filling machine Filling nozzle 8 Filling system Piston pump Filling range 250,500g Filling speed 3,500-4,000 bottles /hour Filling precision ±1% Power 380V 50/60Hz 3.2Kw Air pressure range 0.6-0.8Mpa Weight 800Kg Machine side L18000*W1200*H1800 (L*W*Hmm) Capping machine MAIN PART: (1)vibration disk (2)vibrator (3)slide rail (4)pedestal Just put bottle cap into the fall cap machine ,fall cap machine send the cap into slide rail orderly .When bottles go through take the cap away automatically.Fall cap machine use electromagnetic vibration machine ,so it has the advantages of high speed and low voice. MAIN TECHNICAL PARAMETER; Cap applicable：φ12-φ100mm（can be made according to customers`requirement） roduction ability：4000 bottles/hour Qualified rate：≥99% Voltage：220V 50/60Hz Power ：≤2.2Kw Speed control： frequency conversion adjusting speed Single machine noise：≤70dB Weight：Apr.1000Kg Overall dimension：1650×1000×1500（mm） Round bottle Labeling machine Introduction: Vertical Labeler for round bottle is mainly used in food, chemical and medicine industry. It can realize the automatic bottle-conveying, label separating, labeling round the bottle, automatically print lot number etc.  It adopts mechanical electrical monobloc technology, and stepper motor or servo motor and imported PLC controlling system, so as so be sure the accurate, stable, reliable labeling.

Overview: This machine is specially made for all kinds of viscousity materials, such as chocolate paste，peanut butter, honey, butter, Mayonnaise, ketchup etc. All the contacted part with the chemical oil is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision. Item Piston pump filling machine Filling nozzle 10 Filling system Piston pump driven by servo motor Filling range 500-1000ml Filling speed 36 b/hr based on 1L; Filling precision ±1% Power 220/380V 50/60Hz  3.5Kw Air pressure range 0.4 Mpa Weight 600Kg Machine side L1800*W1200*H1800 Automatic pressure machine instruction Summary This is multi-functional automatic cap ordering, cap feeding, cap pressing and reject device. The structure is Compact, operation is simple, and maintenance is convenient. Technical parameters Model: SD- YG65 Voltage: 380V. Power: 0.85 KW Air pressure: 0.45 a 0.7 MPa Weight: 400Kg Automatic round bottle labeling machine Introduction: Model SD-LTB-A Vertical Labeler for round bottle is mainly used in food, chemical and medicine industry. It can realize the automatic bottle-conveying, label separating, labeling round the bottle and a series of steps. Step-less speed adjustment, easy operation and adjustment with high speed and efficiency. The label will be attached to the exact position with high accuracy and low noise. The spare parts can be matched by customer’s specific requirement. Model SD-LTB-A Vertical labeler for round bottles Capacity 90～100 BPM Bottle Size（mm） To be confirmed Machine dimension（mm） 1600×960×1260 Weight（kg） 200 Power（w） 300 Voltage 220V / 50～60Hz (customized)

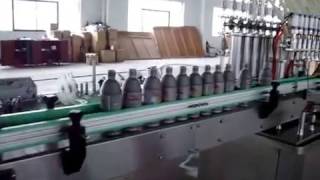

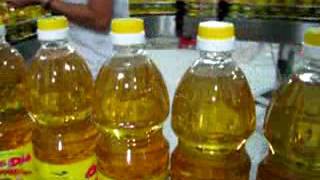

Summary: SD series is special for edible oil filling, capping and equipped with rotary transmission, PLC and frequency adjuster in speed. It is innovated and designed in the requirement of edible oil technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers. Model SD-20/6 Number of working positions filler 20, capper 6 Capacity 2,500BPH (5L) Applicable bottle diameter 50~200mm, height 150~360mm Material supply pressure 0.03~0.08 MPa Vacuum in filling tank 50~80mbar Air supply pressure 0.6~0.7MPa Air consumption 0.5 M3/min Installed power of motor 3.55Kw Rated voltage 380V, 50Hz Machine dimension 2100mm×2670mm×2950mm (L×W×H) Machine weight 2500kg
