Automatic flavored milk bottle filling machine Introduction: Flavored milk bottle filling machine adopts bottle neck holding transmission technology to realize fully automatic,rinsing,filling and capping.Most elements of the electrical system employ foreign advanced products.Each machine element that contacts with the material is made of high quality stainless steel.They obtain the advantages of good abrasive resistance,high stability ,low failure rate,etc.The quality of the equipment reaches the international advanced level. Main parameters: Model SD-GF16/12/6 SD-GF18/18/6 SD-GF24/24/8 SD-GF32/32/10 SD-GF40/40/12 SD-GF50/50/15 Number of Rinsing Heads 16 18 24 32 40 50 Number of Nut Pieces Filling Heads 12 18 24 32 40 50 Number of Liquid Milk Filling Heads 12 18 24 32 40 50 Number of Capping Heads 6 6 8 10 12 15 Rated Production Capacity (500ml) 4000BPH 6000BPH 10000BPH 12000BPH 16000BPH 24000BPH Installed Capacity）(KW) 3.5 4 4.8 7.6 8.3 9.6 Overall Size（mm） 2450×1800×2400 2650×1900×2400 2900×2100×2400 4100×2400×2400 4550×2650×240 5450×3210×2400

Application This filling machine adopts the PLC and the weighing feedback system that makes a higher filling precision. All operations complete on the touching screen. It is reliable, stable, widely used for 20L oil filling. Technical Parameters Filling head:  6 heads(customized) Application:  4-32L Power:380V, 50HZ Bottle size: 5L Filling precision: ±0. 1% Filling Speed: 1,200 bottles per hour for 5L oil Machine weight: 950kg Overall Dimension: 2000*1500*1700mm. Air source requirements: 0.6-0.8mpa

1.Bottle feeding table Summarize This machine is suitable for many kinds of round bottle and square bottle, it adopts electric motor which drives the working flat whirl, so the bottle can follow the fixed orbit to the conveyer belt. This automatic ordering machine is mainly suitable for round or square bottle, is corollary equipment of automatic production line in common usage, to satisfying many kinds of bottle, if  adjust, you need only adjust the position and height of baffle. The machine is equipped with stepless governing frequency conversion. 2.Automatic filling machine Application This machine is specially made for all kinds of viscousity materials, such as chocolate paste，peanut butter, honey, butter, Mayonnaise, ketchup etc. All the contacted part with the oil is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the piston pump, it can fill all of the bottles in one filling machine, with quick speed and high precision. Technical Parameters Item:Piston pump filling machine Filling system:Piston pump driven by servo motor Filling range :100-500ml Filling speed:1800-2000b/h Filling precision:±1% Power:220/380 50/60Hz 2KW Air pressure range:0.4Mpa Weight:600kg Dimension:L1500*W1200*H1800 3.Vacuum capping machine This machine is researched and developed by our company with years of experience, it is unique in domestic .Integrated automatically cap arranging with covering, vacuum capping. Adopted manual vacuum pump to achieve high vacuum. With the functions of no bottle no covering, alarming when no caps are available. Enjoyed high automation. The main pneumatic and electric parts are from world famous brands. With stable and reliable performance. It is widely used for vacuum capping of the Glass Jars with iron caps in the industries of canned food, beverage, seasoning, health care products etc. Main technical parameter Power: ≤2.3KW（including the vacuum pump） Production capacity: 1800-2000 BPH Cap diameter: ￠30-￠55mm   Bottle height: 80-250mm Bottle diameter: ￠30-￠85mm Max vacuum: -0.08mpa Capping torsion: 5-20N.M Air consumption: 0.6M3/0.7Mpa Dimensions: about2100×900×1630mm 750X1060X1400mm Weight: about 850kg 4.Automatic Labeling Machine Purpose and brief The function complete oral liquid bottle, vial or other types of self-adhesive label round the bottle. Reference thermal printer head printing batch number; PLC full control, touch screen set parameters; and whether the bottle not to sign, automatic fault alarm functions. Local interference is strong, stable and reliable performance. Main technique parameters Production capacity: 50 bottles / min Applicable specifications: round bottle affixed week Labeling rate: ≥ 99.5% Power supply: 220V 50Hz Power: 0.6Kw Dimensions: 1800 × 900 × 1400 5.Turn table Summarize This machine is suitable for collecting finished products on table. Features: Collecting finished product. Technical parameters: Power: 60 W, 220V 6.Conveyor Main Components: (1) stainless chain belt (2) bracket / frame work (3) protection bar board (4) fastening frame (5) transmission shaft It is used for the connection of the machines included in an automatic line to convey the products & make it runs continuously.

Application The machine can finishing measuring, filling etc. because of original design, it is more suitable for packing powdered material that is easy to flow, like veterinary drug, sugar, glucose, carbon dust, talcum powder, essence etc. Except motor, the shell of the whole machine is 304 stainless steel, and the powder contact part are SS 316.combined transparent workbin, easy to dismantle without tools. Adopts servo motor to drive auger, with the advantages of durable, accurate location, stable function etc. the machine is controlled by PLC, with stable working, anti-distraction, high filling precision etc. Technical Parameters Power supply: 220V /50HZ (customized) Total power: 1.6KW Volume: 900g Capacity: 10c/min Filling precision: ≤±1% Dimension: 1500×970×2030(L&W&H) Weight: 350Kg

Application       The eye drop filling machine is mainly designed for small bottles and suitable for filling liquid like eye drops, electronic cigarette and so on. The eye drop filling machine adopts the peristaltic pump metering, It can automatically unscrambling bottle, filling and pressing the inner plug, screwing capping , labeling. The eye drop filling machine’s part which touches the liquid medicine is made of 316L stainless material completely, meeting the requirement of GMP. Technical Parameters Model eye drop filing machine Packaging material liquid filing Filling nozzle 1/2/4/6 Filling capacity 2-50ml Bottle size can be customized Filling speed 30-80 bottles/min Power 1.8kw,120v/220v/380v Air supplier 0.36m³/min

Application         Complete Automatic Tablet/Capsule Bottle Packaging Lines are suitable for counting and filling wide range of tablet sizes between3~13mm and hard gelatin capsules #5~#00 in plastic bottles, with volume ranges 15 ~ 300ml. It is the most complete, counting and filling, paper and desiccant inserting, capping, inspecting, induction sealing to pressure sensitive labeling and reliable performance.  Technical Parameters Counting &Filling Speed 20-25 bottle/min Channel 12(8 ,16 ,32 according your production) Diameter of bottle 25 mm to 130 mm Height of bottle 60 mm and 250 mm Dimensions ( L × W × H ) 1800*1260*1670 (includes conveyor) Electrical Requirements 220V/50HZ/2.2kw Weight 650kgs Working direction Left to right

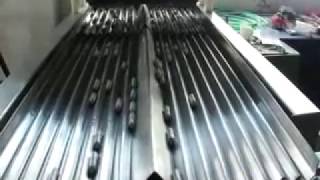

Application           The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position, waiting to be filled in. The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate. There’s a counting photoelectric sensor installed on the medicine container, after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position. Technical Parameters Counting &Filling Speed 20-25 bottle/min Channel 12(8 ,16 ,32 according your production) Diameter of bottle 25 mm to 130 mm Height of bottle 60 mm and 250 mm Dimensions ( L × W × H ) 1800*1260*1670 (includes conveyor) Electrical Requirements 220V/50HZ/2.2kw Weight 650kgs Working direction Left to right

Application widely used in medicine, food, beverage and other industries in the cylindrical object or the week half cycle of the automatic labeling requirements Technical Parameters Voltage AC110/220V, 50/60HZ Labeling Speed 20-500pcs/min Object Size 30-280 mm (H), 20-150 mm (W) Label Size 25-300 mm (L), 20-180 mm (W) Driving Mode Servo motor Labeling Accuracy ±1mm (depend on the evenness of the plane) Printer to use air 5kg/cm2 Roll Size Φ76 mm,Φ300 mm Dimension 2000 mm(L)×1000mm(W)×1360mm(H)

Features This series of models for the S304 stainless steel and anodized by the senior aluminum into The labeling head is driven by an advanced stepping motor All electric eye are imported advanced photoelectric eye Control box adopts microcomputer design, touch panel large LCD, display and built-in dozens of memory devices!Can be installed in any production line or stand-alone production use If necessary, remove the conveyor belt, according to various needs to change the labeling method Coding machine can be installed as needed, transparent tag electric eye, feeding device, sub-bottle device Performance parameters Suitable for bottle shape Round bottle Labeling accuracy ± 1mm Standard label height 130 mm (according to customer requirements design). Applicable roll diameter φ76mm or more can be. The largest paper roll diameter Applicable power:    220V, 50 / 60 Applicable power 220V, 50 / 60HZ, 800W Labeling speed 0-25m / min (can be adjusted) Appearance size (L × W × H) 2100 mm × 1100 mm × 1420 mm

Application: Automatic cup filling sealing machine is widely used to the food industry, such as jelly, juice, water, yoghurt etc. It can loading cups, filling product into cups, sealing cups by roll film/precut film and finished output automatically. The product contact parts made of stainless steel, which is produced in strict accordance with the food industry hygiene standards; Plastic tray and odd shaped trays, can be customized as requirement Flow char：Cup loading part ---- Servo filling ---- Foil loading ---- induction sealing---- lid loading---lid pressing---discharge. Technical parameter: Model SD-SBJ Application sauce ,jam,honey Measuring method Piston pump Capacity 1000-12000 pcs/hr. Filling volume 100-500ml(can customized) Packing material Container Cups Film CPP/Alu foil Power consumption 16kw Power 3N-50HZ 380V Air resource 0.9m³/min Dimension（L*W*H） About 6000mm×1400mm×2000mm(reference) Weight 3000 kg

                           Automatic Weighing Packaging Machine with multi head weigher Application       This automatic potato chips bag packing machine can be used to pack various solid and granule material: such as beans, puffed food, pet food, potato chips,  dates, pistachios, rice, raisins, candy, peanuts, jelly, candied fruit, walnut, almonds, meat balls, sugar, salt, biscuits, frozen dumplings, chocolate etc. Technical Parameters Items Content Packing speed 10-50 bag/min Bag size (L)100-450mm (W)100-350mm Bag making mode Pillow-type bag, standing bag, punching device Range of measuring 5000ml(max) The maximum width of packing film 400mm(diameter) Air consumption 0.6Mpa300L/min Main power/voltage 4KW/220V Dimension (L)1430×(W)1300×(H)1800mm The weight of switchboard 680kg

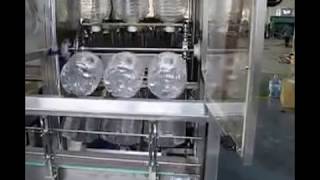

       5 Gallon Water Barrel Washing Filling Capping Machine  Application                 This machine adopts long-range microcomputer control and composed of inspection, alarm, count, control, etc. Work positon which is arranged logically, include rinsing of cycle water, sterilizing water, pure water and the process of water drop. Operating conveniently, decreasing workload! Technical Parameters Type SD 100 SD 200 SD 300 SD 450 SD 600 SD900 Filling volume (L) 18.9 18.9 18.9 18.9 18.9 18.9 specification (mm) 270*490 270*490 270*490 270*490 270*490 270*490 Capacity(b/h) 100 200 300 450 600 900 Air pressure (MPa) 0.5 0.5 0.5 0.5 0.5 0.5 Air consumption (L/min) 300 400 400 500 500 800 Dimensions (L*W*H) (mm) 3485*700*1550 5130*2500*2220 5130*2500*2220 6600*3500*2170 6600*3500*2170 6600*5000*2170 Weight (kg) 680 800 1750 2200 2500 2800
